839Y
Compact 2 - Reversible corner mechanism total extraction
| CODE | DOOR (CABINET) | W | H | D |
|---|---|---|---|---|
| 839AY/40 | 40 (90) | 705 | 1185-1585 | 480 |
| 839AY/45 | 45 (90) | 705 | 1185-1585 | 480 |
| 839AY/50 | 50 (100) | 740 | 1185-1585 | 480 |
| 839AY/60 | 60 (105) | 940 | 1185-1585 | 480 |
| 839MY/40* | 40 (90) | 705 | 682 | 480 |
| 839MY/45* | 45 (90) | 705 | 682 | 480 |
| 839MY/50* | 50 (100) | 740 | 682 | 480 |
| 839MY/60* | 60 (105) | 940 | 682 | 480 |
| 839BY/40 | 40 (90) | 705 | 501 | 480 |
| 839BY/45 | 45 (90) | 705 | 501 | 480 |
| 839BY/50 | 50 (100) | 740 | 501 | 480 |
| 839BY/60 | 60 (105) | 940 | 501 | 480 |

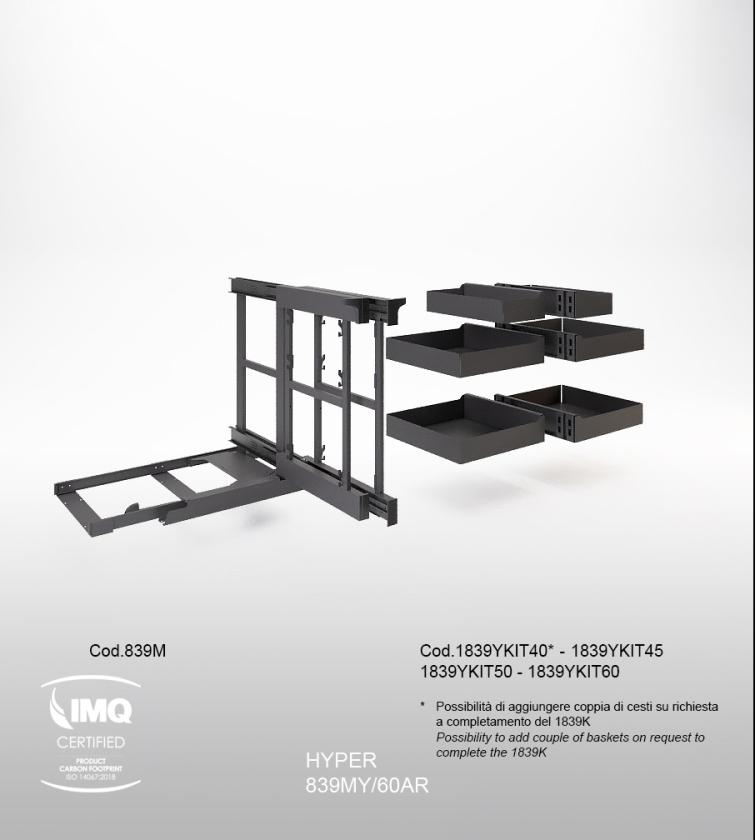

*= Possibility to add couple of baskets on request to complete the 1839Y
839Y
Compact 2 - Reversible corner mechanism total extraction

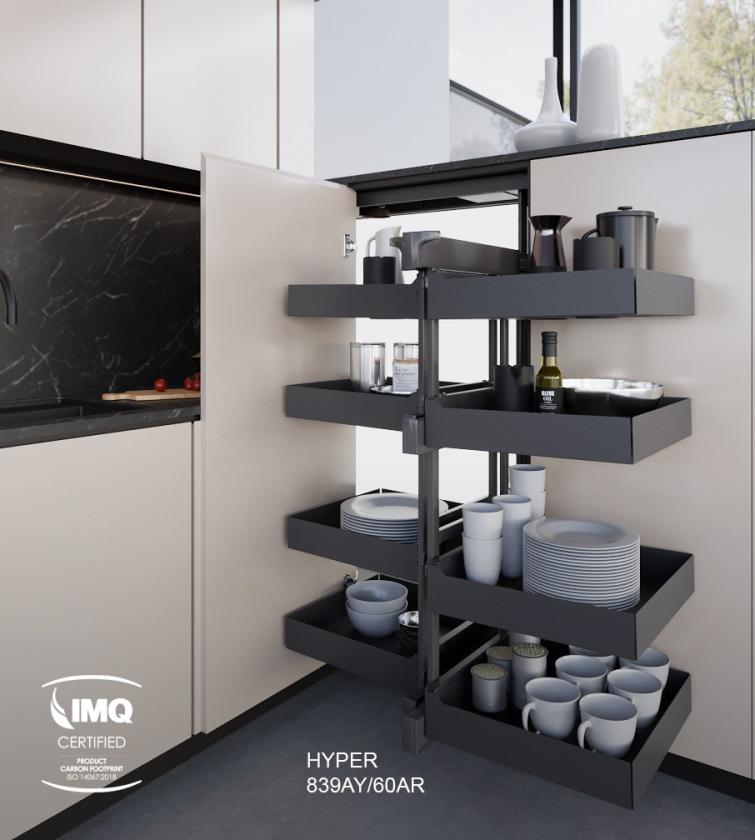

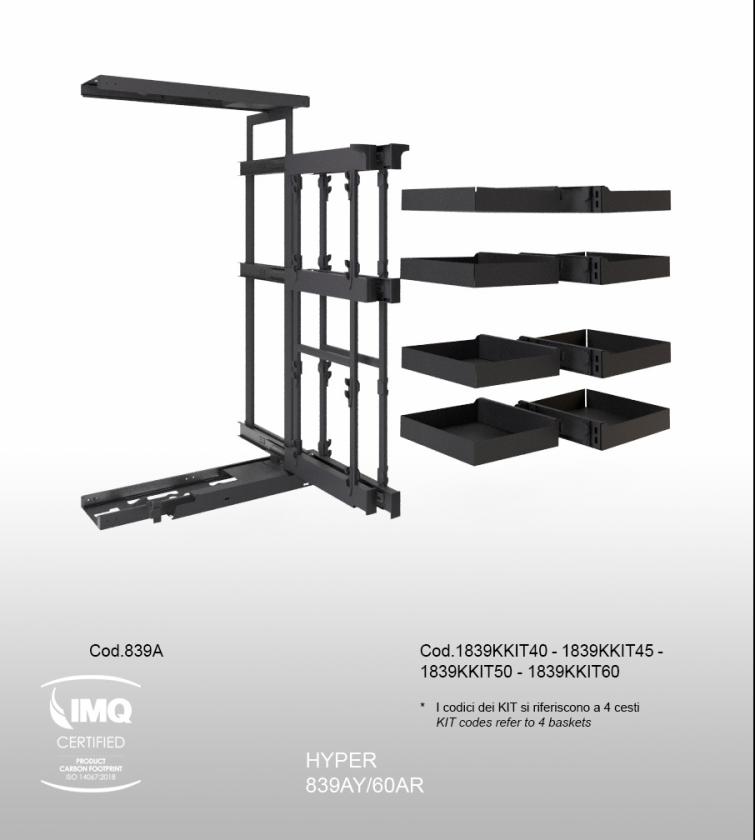

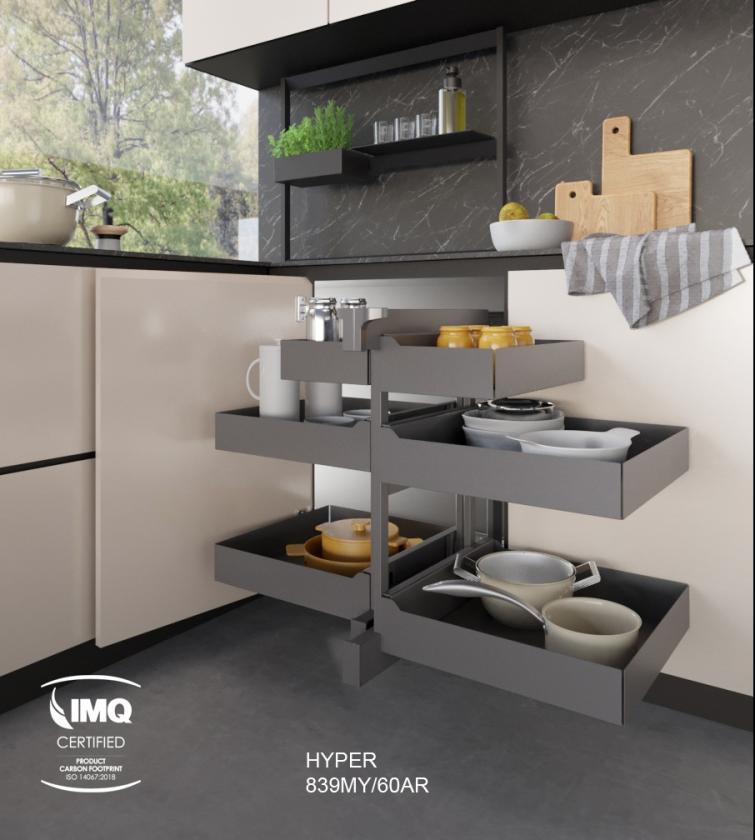

Reversible corner mechanism for full extraction kitchen base, called "Compact". The mechanism is made of painted metal with painted sheet metal basket kits. Available in many heights and finishes. More information available on the data sheet.
FINISHES
Slate
DOWNLOAD
| CODE | DOOR (CABINET) | W | H | D |
|---|---|---|---|---|
| 839AY/40 | 40 (90) | 705 | 1185-1585 | 480 |
| 839AY/45 | 45 (90) | 705 | 1185-1585 | 480 |
| 839AY/50 | 50 (100) | 740 | 1185-1585 | 480 |
| 839AY/60 | 60 (105) | 940 | 1185-1585 | 480 |
| 839MY/40* | 40 (90) | 705 | 682 | 480 |
| 839MY/45* | 45 (90) | 705 | 682 | 480 |
| 839MY/50* | 50 (100) | 740 | 682 | 480 |
| 839MY/60* | 60 (105) | 940 | 682 | 480 |
| 839BY/40 | 40 (90) | 705 | 501 | 480 |
| 839BY/45 | 45 (90) | 705 | 501 | 480 |
| 839BY/50 | 50 (100) | 740 | 501 | 480 |
| 839BY/60 | 60 (105) | 940 | 501 | 480 |
*= Possibility to add couple of baskets on request to complete the 1839Y
